Conventional Twistlocks

Conventional/Standard Intermediate Twist Lock with a handle are used to secure containers to the deck. Such Twist Locks are locked and unlocked with operating rods.

Semi Automatic Twistlocks

Semi-automatic Twist Locks are used between two containers to join and secure them in place.They are locked automatically but can be unlocked only by manual intervention by operating the operating rods.

Fully Automatic Twistlocks

Fully-automatic Twist Locks are placed in the lower corners of the container at the pier. They lock automatically when the container is placed on the top, and unlocks by itself when the container is lifted.

Breech Base Twistlocks

Breech Base Twistlock is a bottom twist lock used in combination with a breech base foundation socket to secure the corner castings of containers on board of a vessel. The twistlock can be easily inserted in the socket by rotating, there’s no additional space around the foundation required.

Trailor Twistlock

Trailor Twistlock is a retractable twist lock with set operating lever designed as a fixed or retractable twistlock for securing containers on any type of trailer.

Midlocks

Midlock to be placed between containers in a stack. Used together with semiautomatic twistlocks on deck between 20-foot containers in 40-foot bays, at mid-bay position resists horizontal and separation forces.

Turnbuckles

Turnbuckle for lashing bar To connect and tighten swivel head lashing rod to a lashing plate or D ring. It resists tension loads.

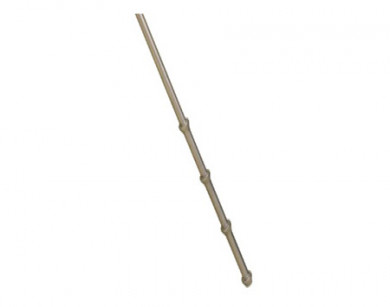

Lashing Bars

Lashing bar used in conjunction with a turnbuckle. Provides support for container stacks on deck. Resists tensile loads. It is secured in the front holes of the corner castings.

Bridge Fittings

Bridge fitting are to link together the top containers of two adjacent stacks. It can be used on deck or in a hold. Resists tensile and compressive forces.

Self Hanging Stacker

Self-hanging stacker for securing of containers in holds and on shore, with flange. It is used to intercept the shearing forces of containers.

Twist Stacker

Twist Stacker is used below the hatch cover between vertical containers hangs from container above during loading.

Stacking Cones

Stacking Cone is used to transfer shearing forces to the bottom container and is placed between two containers or container/ship. It’s mostly used ondeck of river vessels or in ships holds.
